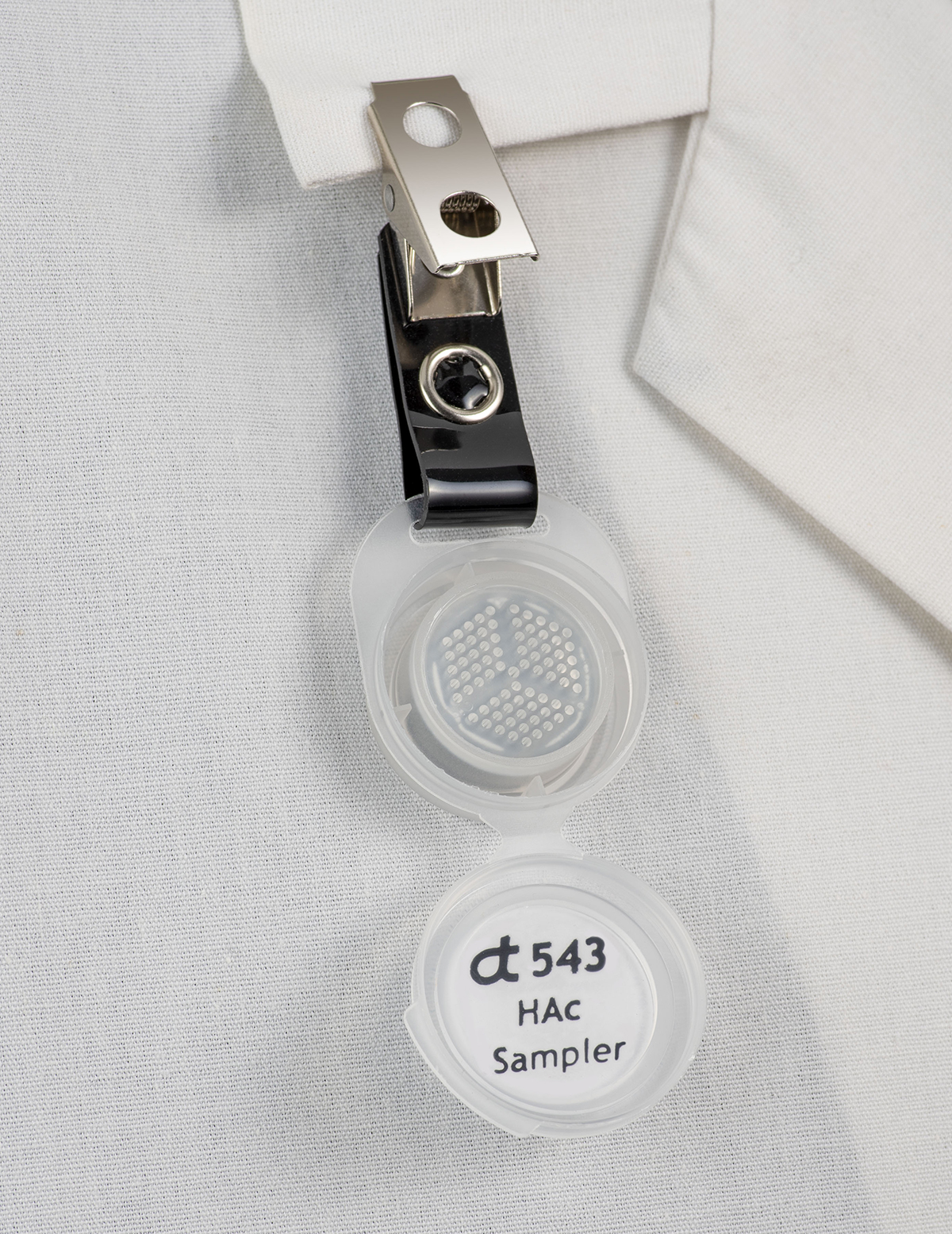

The 543 sampler contains NaOH-treated G-BAC carbon.  (The media changed with lot 6N17.)

The media inside the 543 is not the same media that is inside the 566.  The 566 cannot be used for acetic acid monitoring.

The sampler can be analyzed following NIOSH 1603, but OSHA 186SG (ion chromatography) is a much more sensitive method and allows the badge to be used for STEL monitoring.

The media inside the badge changed with lot 6N17.  The sampling rate before 6N17 is  7.09 mL/min.

Tech Doc

Storage

Before sampling, store and ship at room temperature.

After sampling, store and ship at room temperature.  Return to the lab within 14 days of sampling.

Use For

Functional range of the badge is 15 minutes to 8  hours.

This product may be used for STEL or PEL sampling.

Choose the Right Product for You

To order, if you already know the part number you need, we suggest using the quick order form.  But if you are unsure, use the menu that starts “With Prepaid Analysis?” and it will lead you to the best product for you.  If you are unsure if you want to pay for the analysis at the same time as the badge, learn more about prepaid analysis.
