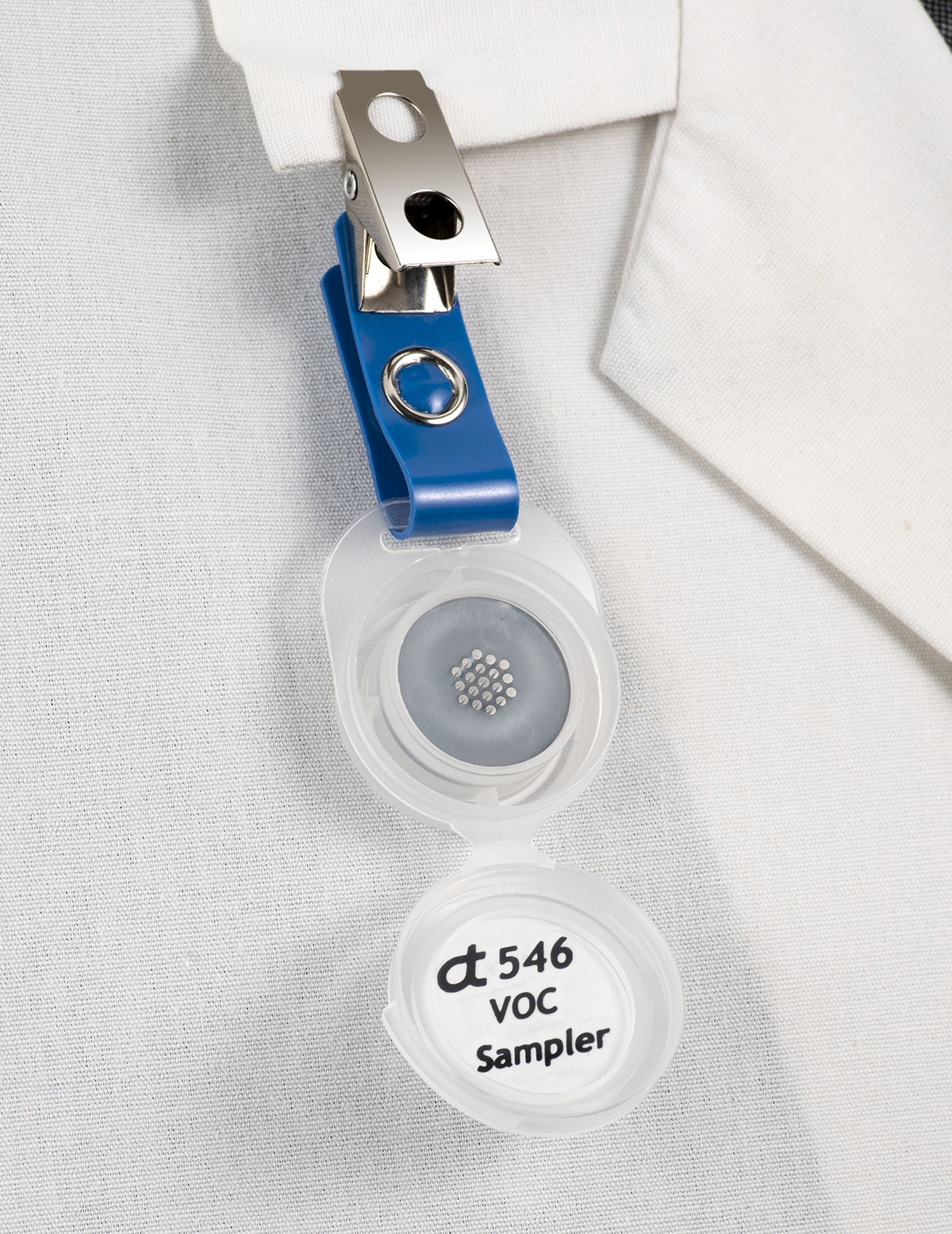

Assay Technology 546 High Capacity Organic Vapor Monitor, open and clipped to collar.
Assay Technology 546 badge

Assay Technology’s 546 High Capacity Organic Vapor Badge is excellent for all-day monitoring of organic vapors that have high PELs (greater than 200 ppm).  The 19-hole sampling face greatly reduces the possibility that the collection media becomes saturated, making a second wafer inside the badge unnecessary in most environments.  While the 8-hour reporting limits are different for each chemical, they are generally around 0.5 ppm, which is well below most PELs.  For specific information about your chemical of interest, check our Sampling Guide.  The 546 badge is not usually recommended for STEL (15-minute) monitoring.

Use our Quick Order Form for the entire list of products online.

Item Description List Price

Box of 5

w/ Analysis

 X546-1AT 1 chemical $224.00Get 10% Off
X546-4AT 4 chemicals $334.00Get 10% Off

Singles

w/ Analysis

 W546-1K 1 chemical $58.00
W546-4K 4 chemicals $102.00

No Analysis

 N546AT 10 monitors $149.00Get 10% Off

Description

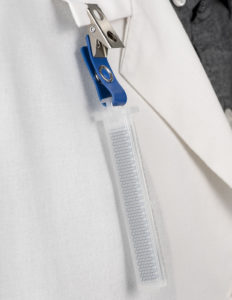

Assay Technology also manufactures two other Organic Vapor Monitors, our 566 and 525 badge.  For assistance in choosing which is best for your situation, use our guide.

Please note: The 546 monitor can NOT be used for acetic acid monitoring.  See our 543 Acetic Acid Monitor.

Industrial Hygiene Labs:

  • Sampling rates are listed in our Sampling Guide or Requested Sampling Rates page (search by CAS #). Contact us if you can’t find a rate you need.
  • Opening the ChemDisk is made much easier using the pick we specify.
  • Media is available for QC testing.  Use our M products (e.g. M566).
  • The media inside the 546 and 566 badges is the same.  The only difference between the two badges is the sampling grid.



This badge collects the following:

Acetone
n-Butyl Acetate
t-Butyl Acetate
Cyclohexane
1,2-Dichloroethylene
Ethyl Acetate
Ethanol
Ethyl Ether
n-Heptane
Isobutyl Acetate
Isopropyl Acetate
Isopropyl Alcohol

And many more!

More Information on the Sampling Guide.

Tech Doc



Storage

Store at room temperature before and after use. Refrigerated storage is always OK.

It is recommended that the badge be returned to the lab within 14 days of use.

Use For

8-hour TWA for chemicals with a PEL 200 ppm or greater.

For STEL monitoring, always use a 566 or 525 badge.

Why Prepay for the Analysis?

Saves You Time and Money

Customers can purchase samplers with the analysis at AT Labs’ AIHA-LAP, LLC accredited laboratories already prepaid.  Since both the monitor and analysis are sold at the same time, the price is significantly lower than buying them separately.  The -1 products come with the analysis of one chemical prepaid, while the -4 products come with the analysis of up to 4 chemicals prepaid. These two choices satisfy most customers’ needs.

At times, customers will need analysis for more chemicals than they have prepaid for. When this happens, they can simply request the additional chemical on the lab request form and will be billed for it after the report is completed.  The price will vary depending on the type of analysis, but you can search for your chemical on our Sampling Guide to view analysis costs. Once you’ve found your chemical, expand its information by pressing the “+” button; the analysis cost for an additional chemical should be listed on the “Analysis Price, Same Test Group, 2nd Chemical” line (Hint: the item code will end with an X, e.g. A705-X).  You can also view our Price List to determine the price per extra chemical.  If you need any help determining pricing, feel free to contact our customer service team.
